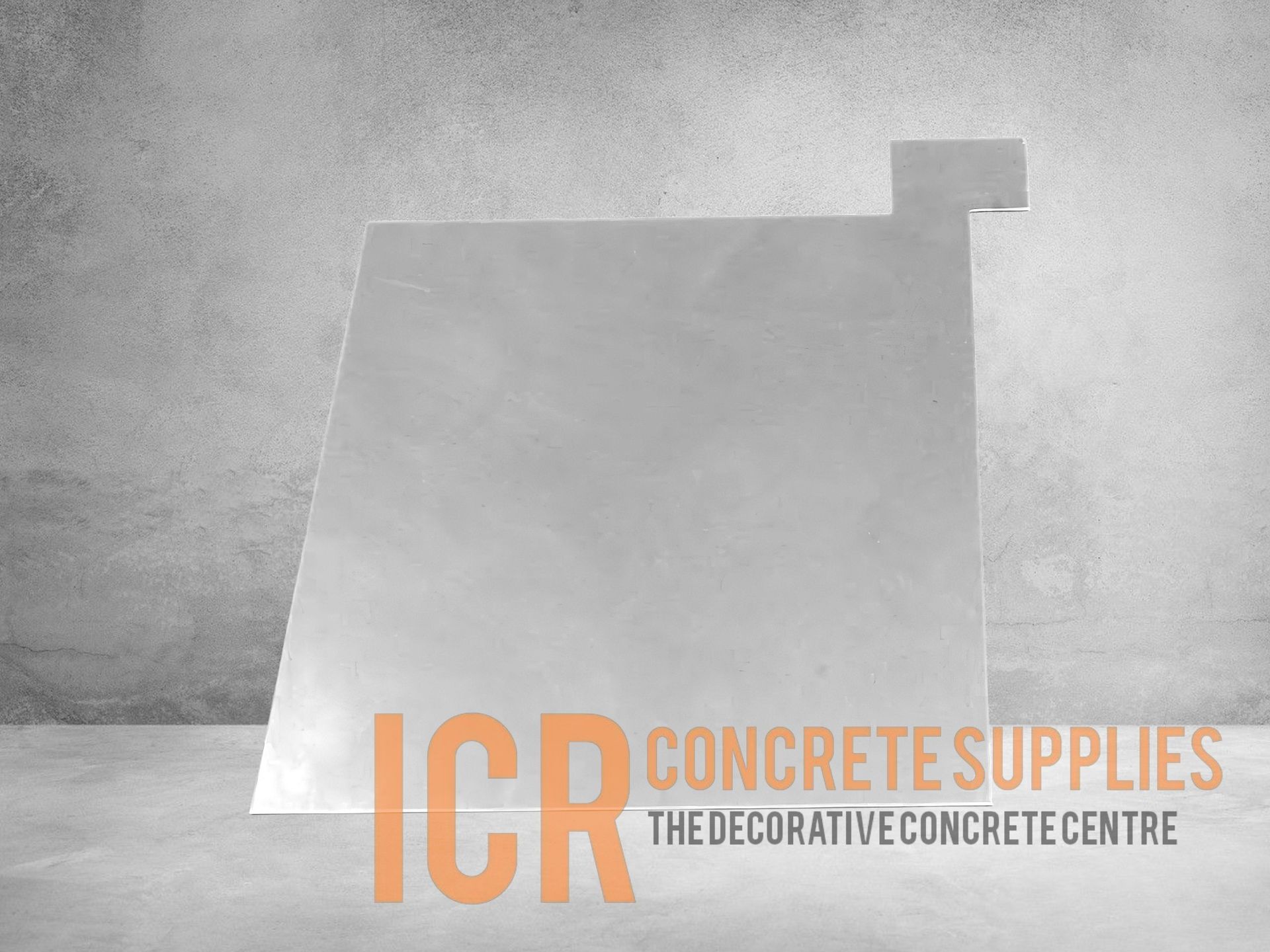

Kerb Plate

Kerb Plates are heavy-duty steel forming accessories designed to be used in conjunction with Kerb Bows when constructing consistent 150mm concrete kerbs and gutters.
The kerb plate works with the kerb bow to help maintain the required kerb profile, depth and spacing during concrete placement. By providing a defined and repeatable forming arrangement, kerb plates help contractors achieve clean, uniform kerb sections across residential, civil and road construction projects.
Manufactured for demanding concreting applications, kerb plates are a practical component of a reusable kerb-forming system and are particularly suited to straight and splayed kerbs, driveway crossovers and civil works.

Key Features:
Heavy-duty steel construction
Designed for use with kerb bows
Helps maintain consistent kerb dimensions
Supports accurate kerb depth and spacing
Suitable for 150mm kerb and gutter applications
Reusable forming accessory
Ideal for demanding concreting and civil construction work

Suitable For:
150mm concrete kerbs and gutters
Straight kerbs
Splayed kerbs
Driveway crossovers
Civil construction
Roadworks
Residential concrete works
Kerb and gutter formwork

**Important –
Kerb Plates are designed to be used together with Kerb Bows and should not be considered a standalone kerb-forming solution.
The Kerb Bow provides the forming profile, while the Kerb Plate works with the bow to maintain the required dimensions and spacing during the concrete pour. Using the two components together creates a more controlled and repeatable kerb-forming setup.

🔮ICR Pro Tip.
Think of the bow as the profile and the plate as the control. When setting up your kerb formwork, don't just focus on getting the outside dimensions right — check that your bows and plates are consistently positioned along the entire run. Consistent spacing and alignment will help produce a much cleaner, more uniform kerb and reduce the amount of finishing work required once the forms are removed.
